DESIGN AND MANUFACTURE OF A PARALLEL SHAFT REDUCER GEARBOX TYPE H3H-500-E FOR EXTRUDER.

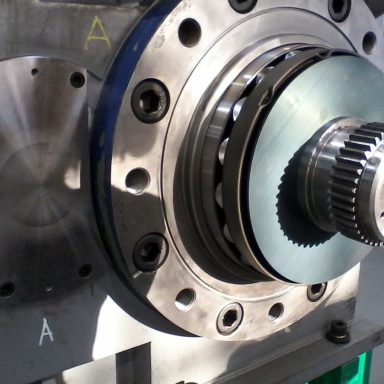

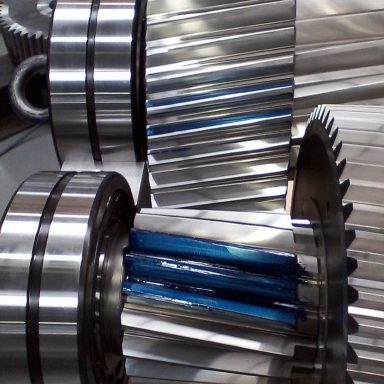

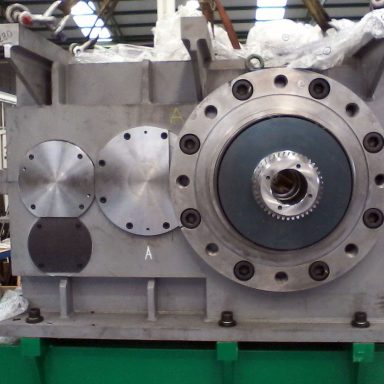

Design and manufacture of a parallel shaft reducer gearbox type H3H-500-E for extruder. Designed and manufactured with welded sheet metal housing, FAG – SKF bearings and CTR helical quality 5-6 gears in accordance with to ISO 1328 standard.

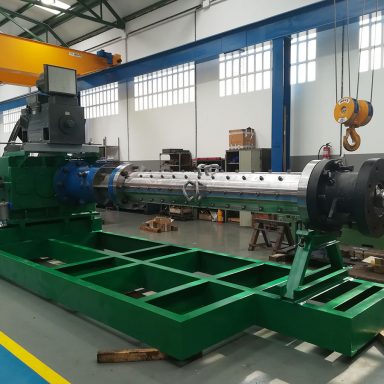

Set comprising:
– Electric motor 450 Kw

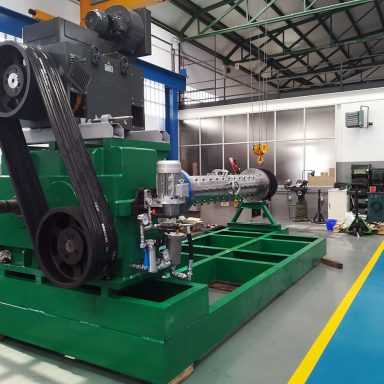

– Transmission set pulleys and V-belts i=1.1
– H3H-500-E Reducer gearbox
– Bedplate

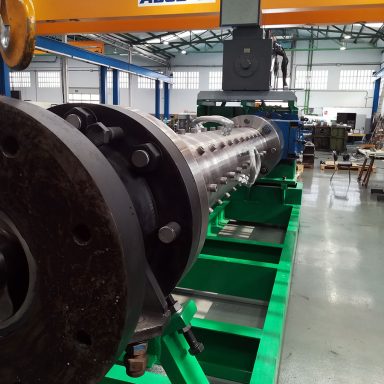

– Reconditioning and retrofitting of original head and feeder rollers

Engine power: 450 kW.
Engine speed: 1,000 rpm.
Maximum power: 560 kW.
Output speed: 30 rpm.
Axial ratio of the spindle: 750 KN.
Rated torque: 145 KNm.

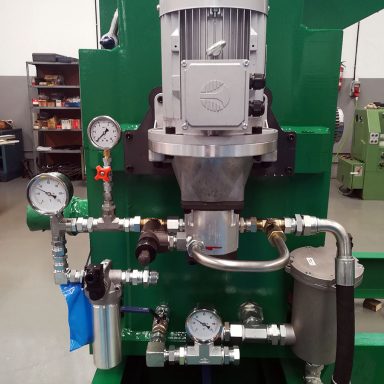

Lubrication: Motor pump + filtering equipment
Circuit cooling: Air-oil exchanger.
Weight of the set: 21 T.
